How Integrated Monitoring Cuts Construction Costs

Construction sites running separate noise, dust, and vibration monitoring systems typically manage three or more vendor contracts, three sets of hardware, and three data platforms. That fragmentation costs money at every stage, from procurement through to compliance reporting. An integrated monitoring approach consolidates these measurements into a single system, and the financial case is straightforward.

The Real Cost of Fragmented Monitoring

Most UK construction projects subject to Section 61 agreements (Control of Pollution Act 1974) or BS 5228-1:2009+A1:2014 requirements need to monitor at least noise, dust (PM10 and PM2.5), and vibration simultaneously. The EU daily limit value for PM10 is 50 µg/m³ (not to be exceeded more than 35 days per year), while typical Section 61 noise limits range from 65–75 dB LAeq,T depending on time of day and receptor sensitivity. Running separate systems for each parameter means:

• ·Multiple hardware purchases or rental agreements. Three standalone monitors can cost two to three times more than a single integrated unit covering all parameters.
• ·Separate data platforms. Each vendor typically charges monthly platform fees. Three platforms means three subscriptions, three logins, and three different reporting formats.
• ·Higher labour costs. Technicians must install, maintain, and relocate each system independently. On phased projects where monitoring positions shift every few weeks, this labour overhead compounds rapidly.
• ·Slower compliance reporting. Pulling data from three sources and combining it into a single report for the local authority or client adds hours of administrative work per reporting period.

A site running three standalone systems across a 12-month project can easily spend 40–60% more on total monitoring costs compared to an integrated solution covering the same parameters. For a project requiring four perimeter monitoring positions, standalone systems from separate vendors can total EUR 60,000–120,000 in equipment, installation, and annual platform fees combined — before accounting for the labour overhead of managing three separate maintenance schedules.

What Integrated Monitoring Actually Means

An integrated system measures multiple environmental parameters from a single hardware unit, streams all data to one cloud platform, and generates unified reports. The Air Pro 2 Cellular, for example, monitors particulate matter (PM1, PM2.5, PM10), noise levels, vibration, and a configurable range of gases from a single solar-powered station.

This is not about compromise. Each sensor module meets the same accuracy and certification standards as its standalone equivalent. The particulate matter module holds MCERTS certification for PM2.5 and PM10 indicative monitoring, validated through laboratory testing and 12+ week field collocation against reference-grade instruments. The integration happens at the platform level, where Sensorbee Cloud correlates data across parameters and presents it in a single dashboard.

Five Areas Where Integration Saves Money

1. Equipment and Procurement

One purchase order replaces three. One delivery, one installation, one commissioning process. On multi-phase projects requiring 4-8 monitoring positions, this consolidation alone can reduce equipment costs by 30-50%.

2. Installation and Relocation

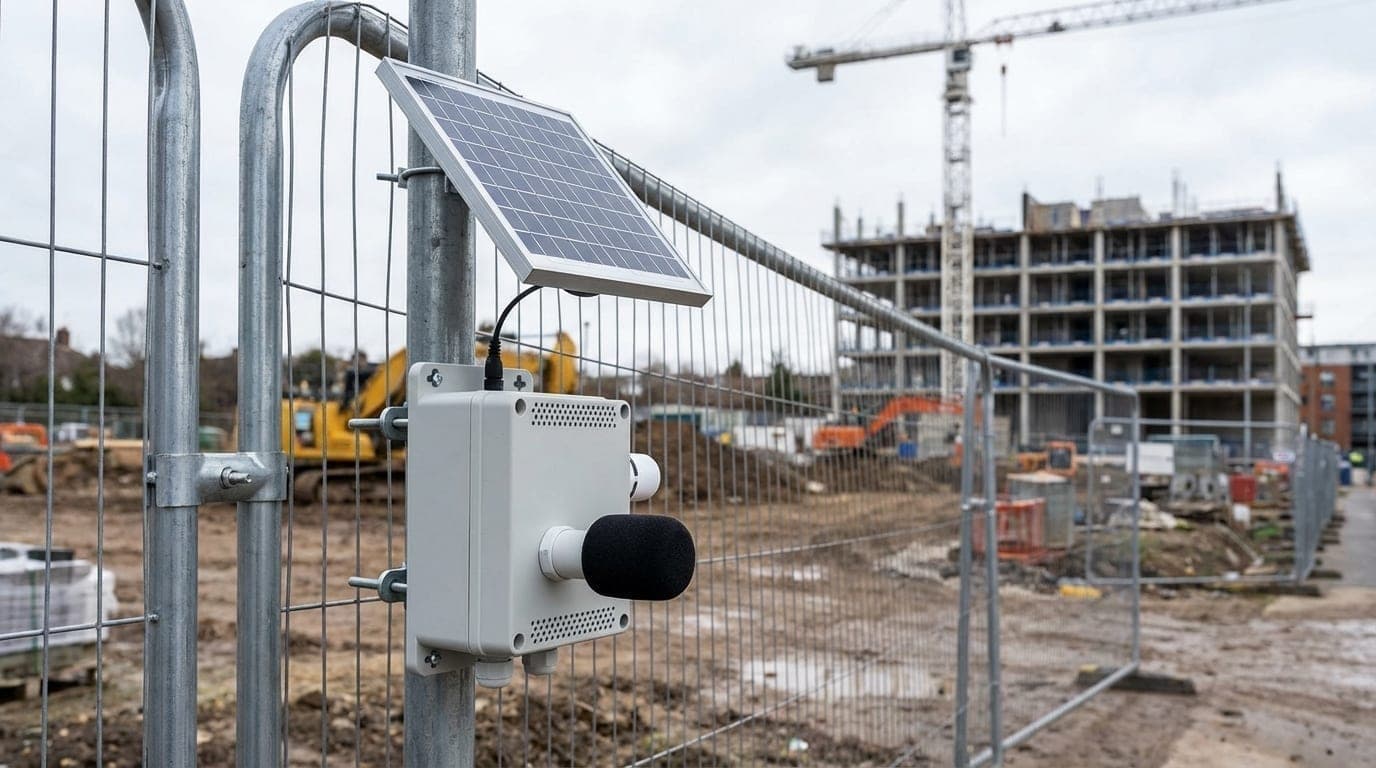

Integrated units are designed for rapid deployment. A single technician can install and commission an Air Pro 2 Cellular in under 10 minutes using a pole mount, wall bracket, or magnetic base. The solar panel and NB-IoT or LTE-M cellular connection require no electrical infrastructure or network cabling. Moving the unit to a new position as demolition or earthworks progress takes the same time. With standalone systems, each relocation involves three separate procedures — and standalone vibration monitors or reference dust samplers may each require specialist technicians for reinstallation.

3. Power and Connectivity

Solar-powered, cellular-connected units eliminate two recurring cost lines: mains power supply and wired network connections. On large sites where monitoring positions sit hundreds of metres from the nearest power source, the cost of running temporary electrical supplies — typically EUR 1,200–3,500 per location for cabling, breakers, and certification — can exceed the monitoring equipment cost itself. The integrated solar panel with lithium battery backup maintains continuous operation through extended cloudy periods, and the IP65-rated enclosure operates across -20 °C to 60 °C without climate-controlled housing.

4. Data Management and Reporting

A single platform generates BS 5228-1:2009+A1:2014 noise reports, dust exceedance summaries against the EU PM10 daily limit of 50 µg/m³, and vibration compliance records referenced to BS 7385-2:1993 guide values from the same interface. Environmental managers spend less time exporting, reformatting, and cross-referencing data from different systems. Automated threshold alerts across all parameters reduce the risk of breaches that lead to enforcement action and project delays.

5. Ongoing Maintenance

Modular sensor cartridges on integrated systems can be swapped on-site without specialist tools. When a particle matter module needs calibration or replacement, the noise and vibration monitoring continues uninterrupted. With standalone systems, a fault in one monitor creates a gap in that parameter's dataset until a replacement arrives.

Remote Access Changes the Operational Model

Cloud-based monitoring removes the need for daily site visits solely to check monitoring equipment. Environmental managers can review live data, adjust alert thresholds, and generate compliance reports from any device. For consultancies managing multiple sites simultaneously, this capability directly reduces travel time and vehicle costs.

Real-time alerts also shift the operational model from reactive to preventive. When PM10 levels approach the site action level, the system notifies the site team before a breach occurs. Applying dust suppression at 80% of the threshold is far cheaper than responding to an exceedance that triggers local authority scrutiny and potential stop-work orders.

Cost Example: Four-Point Perimeter Network

To illustrate the savings, consider a typical urban construction project requiring four boundary monitoring positions over 12 months, measuring dust (PM10/PM2.5), noise (LAeq), and vibration (PPV):

Standalone approach (three vendors):

• ·Dust monitors (4 units): approximately EUR 14,000–28,000
• ·Noise monitors (4 units): approximately EUR 8,000–20,000
• ·Vibration sensors (4 units): approximately EUR 6,000–16,000
• ·Electrical installation (4 locations): EUR 4,800–14,000
• ·Three platform subscriptions (12 months): EUR 2,400–7,200
• ·Total: approximately EUR 35,000–85,000

Integrated approach (Air Pro 2 with modular sensors):

• ·Four integrated stations with dust, noise, and vibration modules: approximately EUR 20,000–28,000
• ·Installation (10 minutes per unit, no electrical work): EUR 240–480
• ·Single platform subscription (12 months): EUR 600–2,400
• ·Total: approximately EUR 21,000–31,000

The integrated approach delivers 40–65% savings on this representative scenario, with additional value from unified reporting, single-vendor support, and the ability to redeploy equipment across projects without reconfiguration.

Sensor Health Monitoring Protects Data Quality

Environmental data is only valuable if it is accurate and continuous. Gaps in monitoring records undermine compliance cases and can invalidate entire reporting periods. Integrated systems with built-in sensor health monitoring track each module's performance continuously, flagging calibration drift or hardware faults before they compromise data quality.

This proactive approach to equipment maintenance avoids the scenario where a standalone monitor fails silently for days or weeks, producing data that later proves unreliable during a compliance review.

Planning Support and Strategic Sensor Placement

The monitoring equipment itself is only part of the cost equation. Poor sensor placement, whether too far from receptors, too close to localised sources, or in positions that do not satisfy the monitoring scheme approved under a Section 61 consent, wastes money on data that does not serve its intended purpose.

Effective monitoring programmes start with a site risk assessment that identifies which parameters need monitoring, where receptors are located, and which UK standards apply, whether that is BS 5228-1:2009+A1:2014 for noise and BS 5228-2:2009+A1:2014 for vibration, MCERTS requirements for indicative particulate monitoring under EN 15267, or BS 7385-2:1993 damage guide values for structural vibration (15 mm/s PPV at 4 Hz for residential buildings, rising to 50 mm/s at 40 Hz and above).

Frequently Asked Questions

How much can integrated monitoring save compared to standalone systems?

Sites typically see 30-50% lower total monitoring costs over a project lifecycle. The savings come from reduced equipment procurement, fewer installation and relocation events, single-platform data management, and lower maintenance overhead. The exact figure depends on project duration and the number of monitoring positions required.

Does an integrated system compromise measurement accuracy?

No. Each sensor module within an integrated station meets the same technical standards as its standalone equivalent. The integration is at the data and platform level, not at the sensor level. Particulate matter, noise, and vibration measurements maintain independent calibration and accuracy specifications.

Can integrated systems meet MCERTS and BS 5228 requirements?

Yes. The monitoring hardware and cloud platform are designed to support compliance with MCERTS certification requirements for particulate monitoring and BS 5228 reporting standards for construction noise and vibration. Data outputs align with the formats local authorities expect for Section 61 consent compliance.

What happens when a single sensor module needs servicing?

Modular design means individual sensor cartridges can be swapped on-site without taking the entire monitoring station offline. The remaining parameters continue recording uninterrupted while the affected module is replaced or recalibrated, maintaining continuous data coverage across all measurements.
