14 W Solar Panel
Legacy product. The 14 W panel has been superseded by the 30 W Solar Panel (SB6104), which is the standard for all new deployments. This page is kept for existing 14 W installations.

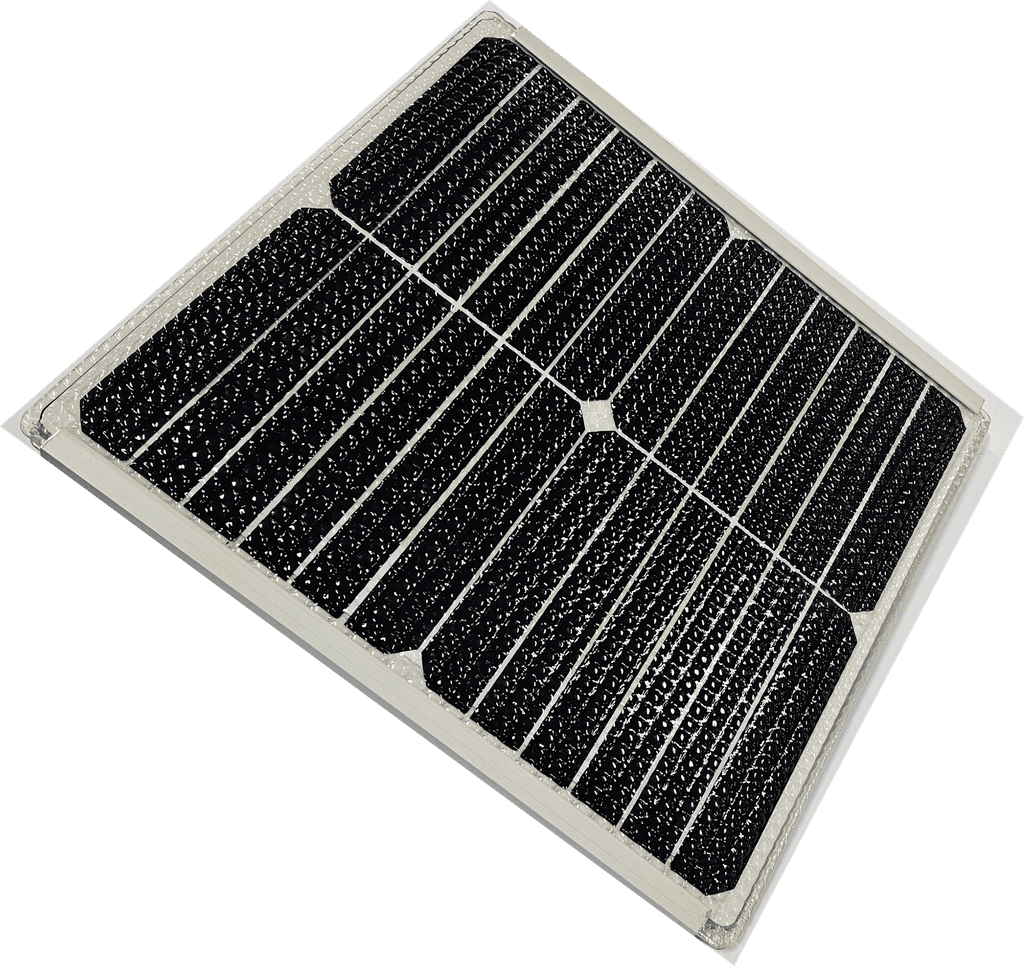

The 14 W solar panel (SB6103) was supplied as the outdoor power source for Sensorbee Air units. It's tuned for the units' draw and ships with the mounting hardware needed to fit it next to a unit on a mast or wall.
Specifications
| Spec | Value |
|---|---|
| Rated power | 14 W |
| Dimensions | 290 × 275 mm |
| Weight | 1.25 kg |
| Tilt range | 45° to 90° |
| Standard cable | 0.5 m |
| Extension cable (optional) | 2 m (SB9022) |
Choosing the right setup

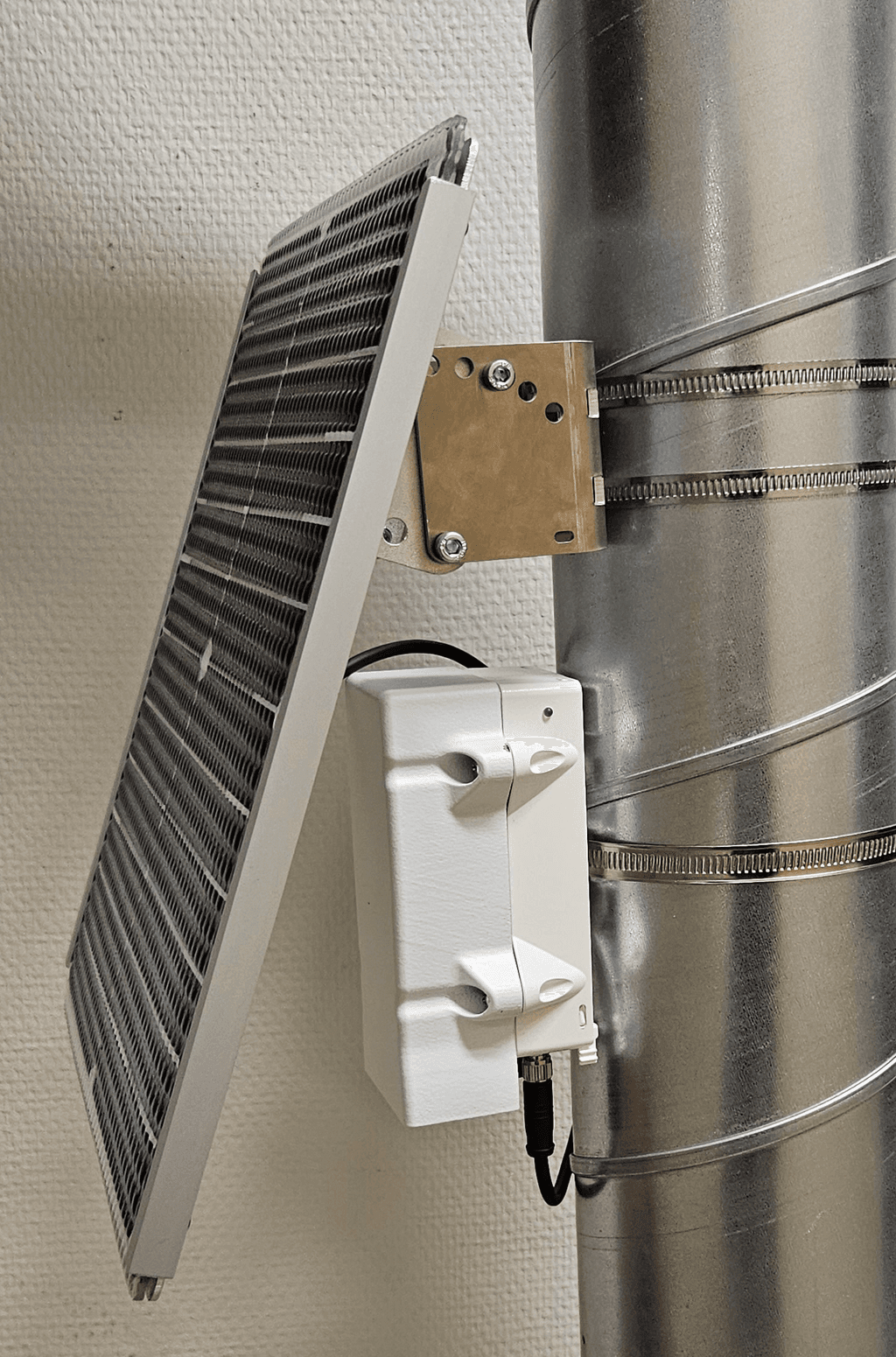

- ·Mast or wall mount — both are supported via the same bracket.
- ·Tilt angle — adjustable from 45° to 90° to maximise winter-sun capture in your latitude. UK installs typically benefit from steeper tilt to compensate for low winter sun.
- ·Cable length — order the extension cable (SB9022) if the standard 0.5 m doesn't reach.
For deployment-site selection (sky access, shading risk, etc.), see the Air Pro 2 deployment guide or Air Lite deployment guide.
