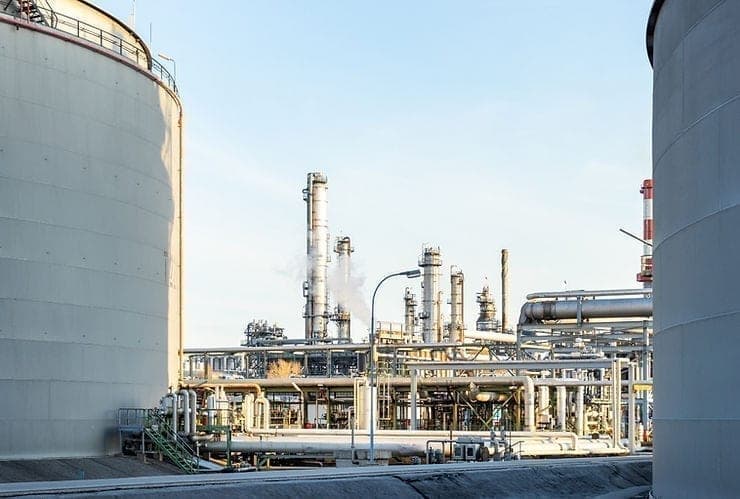

Oil Refinery Emissions Monitoring and Fenceline Air Quality

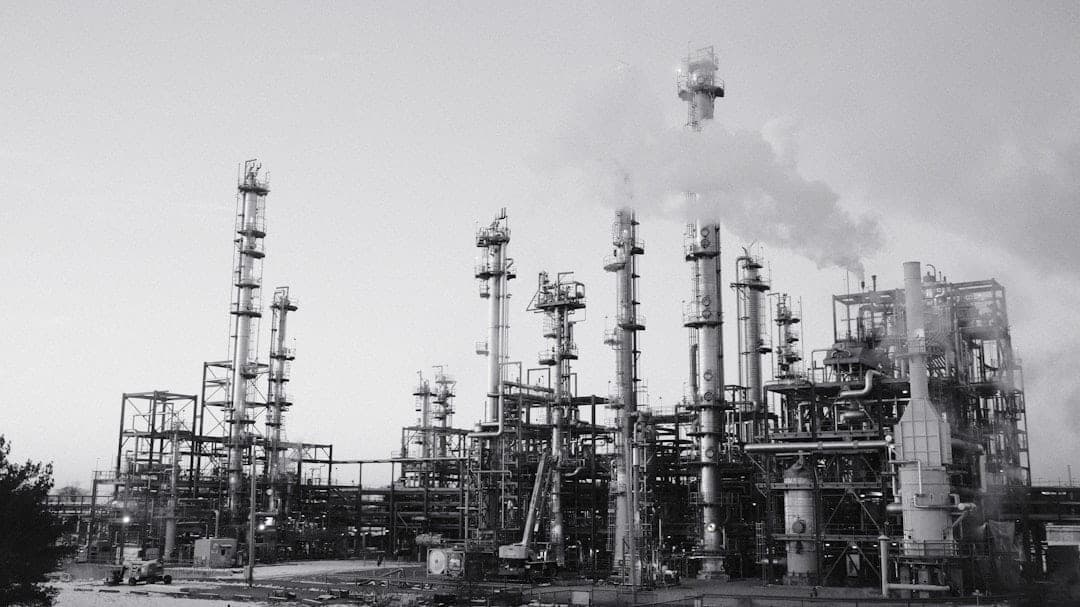

A typical oil refinery processes 100,000 to 500,000 barrels of crude oil per day. Every stage of that process — distillation, cracking, reforming, treating, and blending — releases pollutants into the atmosphere. Sulphur dioxide, nitrogen oxides, volatile organic compounds, benzene, hydrogen sulphide, and particulate matter all escape from stacks, flanges, valve packing, storage tank vents, and loading operations. Some emissions are permitted and controlled. Others are fugitive, escaping from thousands of potential leak points across a facility that may cover several square kilometres.

Why Refinery Emissions Require Continuous Monitoring

Refineries do not emit pollutants at steady, predictable rates. Process upsets, equipment failures, flaring events, and tank loading operations cause concentration spikes that may last minutes or hours. A leaking heat exchanger flange might release benzene at concentrations well above occupational exposure limits before maintenance crews identify the source.

Periodic sampling — even weekly — misses these events entirely. A grab sample taken on a calm Tuesday morning tells you nothing about the VOC plume that drifted across the fence line during a Saturday night flaring event.

Continuous monitoring addresses this gap. Sensors operating around the clock capture every exceedance, every spike, and every gradual drift that signals developing equipment problems. Data streams to a centralised platform in real time, generating alerts the moment concentrations exceed pre-set thresholds.

In the United States, EPA regulations under 40 CFR Part 60 (New Source Performance Standards) and 40 CFR Part 63 (National Emission Standards for Hazardous Air Pollutants) require continuous emission monitoring systems (CEMS) for major sources. The EPA's 2015 Petroleum Refinery Sector Rule specifically mandates fenceline monitoring for benzene at all petroleum refineries, using passive samplers at 14-day intervals along the facility boundary.

In the UK and EU, the Industrial Emissions Directive (2010/75/EU) and Best Available Techniques Reference Documents (BREFs) set comparable requirements. The Refining of Mineral Oil and Gas BREF (2015) establishes BAT-AELs including SO2 emissions of 50–600 mg/Nm³ from fluid catalytic crackers (depending on configuration and abatement) and NOx emissions of 100–300 mg/Nm³ from process heaters. UK Environmental Permits specify emission limit values for individual pollutants derived from these BAT-AELs and require operators to demonstrate compliance through approved monitoring methods.

Key Pollutants from Refinery Operations

Understanding what to monitor requires understanding the refinery process chain and where each pollutant originates.

Volatile organic compounds (VOCs) escape from storage tanks, loading racks, wastewater treatment units, and process equipment leaks. Benzene, toluene, ethylbenzene, and xylenes (BTEX compounds) are of particular concern due to benzene's classification as a Group 1 carcinogen. The UK workplace exposure limit for benzene is 1 ppm (8-hour TWA). Ambient concentrations at refinery fence lines should remain well below this. A dedicated VOC sensor module detects total VOC concentrations and flags events that warrant investigation.

Sulphur dioxide (SO2) comes primarily from fluid catalytic crackers, sulphur recovery units, and boilers burning refinery fuel gas. SO2 irritates the respiratory tract at concentrations above 125 ug/m3 (24-hour mean, WHO guideline). Continuous SO2 monitoring at the fence line provides early warning of process upsets in sulphur-handling units.

Hydrogen sulphide (H2S) is present throughout refinery sour gas systems and wastewater treatment. H2S is immediately dangerous to life at 100 ppm and detectable by smell at concentrations as low as 0.5 ppb. Odour complaints from communities near refineries often trace back to H2S releases from sour water strippers or API separators.

Nitrogen dioxide (NO2) forms in heaters, boilers, and flares. The UK annual mean limit for NO2 is 40 ug/m3. Refinery-related NO2 contributes to local exceedances, particularly in areas where refinery emissions combine with traffic pollution. An NO2 sensor module provides continuous tracking.

Carbon monoxide (CO) indicates incomplete combustion in heaters, boilers, and flares. While not typically the primary pollutant of concern at fence lines, CO monitoring serves as a diagnostic tool — rising CO levels often signal burner problems or process upsets before other parameters respond.

Particulate matter (PM2.5 and PM10) arises from catalytic cracker regenerators, coke handling, and maintenance activities. The particle matter module measures both fractions continuously.

Fenceline Monitoring: Design and Placement

Fenceline monitoring places sensor nodes at or near the facility boundary to measure what actually reaches the surrounding environment. This approach serves three purposes: detecting fugitive emissions that escape process monitoring, verifying that permitted emissions disperse as predicted, and providing community-level exposure data.

A well-designed fenceline network for a medium-sized refinery typically includes eight to twelve monitoring points. Placement follows several principles:

Wind rose analysis determines where downwind receptors experience the highest concentrations. The prevailing wind direction in much of the UK is south-westerly, so fence line positions to the north-east of the facility generally capture the most frequent plume impacts.

Source proximity matters for fugitive emission detection. Nodes placed near tank farms, loading racks, and wastewater treatment areas catch localised releases that might disperse below detection limits before reaching the outer boundary.

Community receptors require dedicated monitoring points. If residential properties, schools, or hospitals lie within 1 km of the refinery boundary, placing sensors at the nearest point on the fence line facing those receptors provides the most relevant exposure data.

Background reference nodes upwind of the facility establish baseline concentrations, allowing operators to distinguish refinery contributions from regional air quality.

Sensor Technology for Refinery Environments

Refinery environments present specific challenges for monitoring equipment. Temperatures can exceed 40 degrees C near process units. Humidity is often high. Corrosive gases and hydrocarbon vapours are present. Equipment must operate continuously for months between maintenance visits.

The Sensorbee Air Pro 2 Cellular is designed for exactly these conditions. Its weatherproof enclosure withstands temperature extremes and high humidity. The optical particle counter includes a heating element that prevents condensation from affecting PM measurements — critical in the often damp conditions around cooling towers and water treatment areas.

The modular sensor architecture allows each unit to be configured with up to six gas sensor modules selected for the specific pollutant profile of the refinery. A typical configuration might include SO2, NO2, VOC, CO, and H2S modules alongside the integrated particulate matter sensor.

Solar power with battery backup eliminates the need for electrical infrastructure at remote fence line positions. Cellular connectivity (LTE-M / NB-IoT) transmits data to Sensorbee Cloud every few minutes, where operators access a unified dashboard showing all monitoring points, current readings, historical trends, and alert status.

Data Management and Compliance Reporting

Raw sensor data is only useful if it is properly managed, validated, and reported. The Sensorbee Cloud platform handles this workflow.

Real-time dashboards display current concentrations at all monitoring points, with colour-coded indicators for normal, elevated, and exceedance conditions. Map views show spatial distribution of pollutants across the site.

Automated alerts trigger when any parameter exceeds a configurable threshold. Alerts reach operations and environmental teams via email, SMS, or integration with existing SCADA and alarm management systems. Tiered alerting — warning, action, and emergency levels — ensures proportionate response.

Compliance reports are generated automatically in formats compatible with UK Environment Agency and Scottish Environment Protection Agency (SEPA) requirements. Monthly and annual summaries include data capture rates, exceedance counts, and statistical summaries that regulators expect to see.

Trend analysis over weeks and months reveals patterns that point to developing equipment issues. A slow upward drift in SO2 at a particular fence line node might indicate degrading catalyst performance in a nearby fluid catalytic cracker — information that helps maintenance planners schedule interventions before an uncontrolled release occurs.

Worker Safety and Community Protection

Fenceline monitoring serves an immediate safety function. H2S releases from sour gas systems can reach dangerous concentrations within seconds. Continuous monitoring at potential release points, combined with automated alarms, gives operators precious minutes to initiate emergency response procedures, evacuate affected areas, and shut down leaking equipment.

For surrounding communities, access to real-time air quality data builds confidence that refinery operations are being managed responsibly. Several UK refineries have begun publishing fence line monitoring data on public-facing websites, responding to community expectations for transparency.

Environmental consultants advising refinery operators on monitoring strategies should consider both the regulatory minimum and the reputational benefits of comprehensive coverage. A monitoring network that exceeds permit requirements demonstrates corporate commitment to environmental stewardship and can smooth future permit renewal processes.

Frequently Asked Questions

What is fenceline monitoring and why do refineries need it?

Fenceline monitoring places air quality sensors at or near the boundary of a refinery to measure pollutant concentrations reaching the surrounding environment. It detects fugitive emissions that escape from process equipment, verifies dispersion models, and provides community-level exposure data. In the US, EPA regulations specifically mandate fenceline benzene monitoring at all petroleum refineries. UK Environmental Permits increasingly require similar boundary monitoring.

Which pollutants are most important to monitor at a refinery?

The primary pollutants are VOCs (especially benzene and BTEX compounds), SO2, H2S, NO2, CO, and particulate matter (PM2.5 and PM10). The exact priority depends on the refinery's process configuration. Facilities with large fluid catalytic crackers produce more SO2 and PM. Those with extensive sour gas handling generate more H2S. A modular sensor platform allows you to tailor the configuration to your specific emission profile.

How does weather affect fenceline monitoring accuracy?

High humidity can cause condensation in optical particle counters, producing false elevated PM readings. Temperature extremes affect electrochemical gas sensor response times and sensitivity. Quality monitoring equipment compensates for these factors — for example, the Sensorbee Air Pro 2 Cellular uses a heated inlet on its particle counter to eliminate humidity interference. Wind data from integrated weather sensors helps interpret concentration variations caused by changing dispersion conditions.

Can a single monitoring platform measure all refinery pollutants?

No single instrument measures every pollutant at laboratory-grade accuracy. However, multi-sensor platforms like the Air Pro 2 Cellular measure the most common refinery pollutants — PM, SO2, NO2, VOC, CO, and additional gases via expansion modules — in a single unit. This provides effective screening and alert capability across the full range of refinery emissions. For specific regulated pollutants like benzene at trace concentrations, reference-grade analysers may still be needed alongside the sensor network.
