Real-Time Vibration Monitoring Prevents Construction Delays

Uncontrolled vibration from pile driving, excavation, or heavy equipment doesn't just disturb neighbours -- it can crack foundations, halt projects, and cost contractors tens of thousands in fines and delays. For construction managers, the question isn't whether vibration monitoring is necessary, but how to implement it quickly and reliably before problems arise.

Traditional vibration monitoring often requires expensive specialists, complex equipment installation, and days of setup time. By then, complaints may have already been filed. Modern IoT-based vibration monitoring changes this equation entirely, offering construction teams real-time protection that deploys in minutes, not days.

Why Vibration Monitoring Is Critical for Construction Projects

Construction vibration isn't just a nuisance -- it's a measurable risk that regulators and neighbours take seriously. Peak Particle Velocity (PPV) measurements determine whether your project complies with standards such as BS 7385-2:1993. The damage guide values are frequency-dependent: 15 mm/s PPV at 4 Hz for residential buildings, rising to 20 mm/s at 15 Hz and 50 mm/s at 40 Hz and above. Reinforced or framed structures have higher thresholds, but even these require continuous monitoring when pile driving, blasting, or heavy excavation occurs within 50 metres.

The real costs of unmonitored vibration:

• ·Project shutdowns: Regulators can halt work immediately if damage complaints arise without monitoring data
• ·Structural damage claims: Neighbouring property owners may file costly damage lawsuits
• ·Reputation damage: Bad neighbour relations complicate future projects in the same area
• ·Delayed timelines: Retroactively installing monitoring after complaints adds weeks to schedules

According to industry research, construction delays due to environmental violations can cost projects EUR 9,500–47,000 per day in lost productivity, contract penalties, and compliance remediation. For large infrastructure projects, these costs multiply dramatically.

What Activities Require Vibration Monitoring?

Not all construction creates problematic vibration, but certain activities demand close monitoring:

High-Risk Activities

• ·Pile driving: Impact and vibratory hammers create the strongest ground vibrations
• ·Blasting and demolition: Explosive demolition generates sudden, high-amplitude vibration

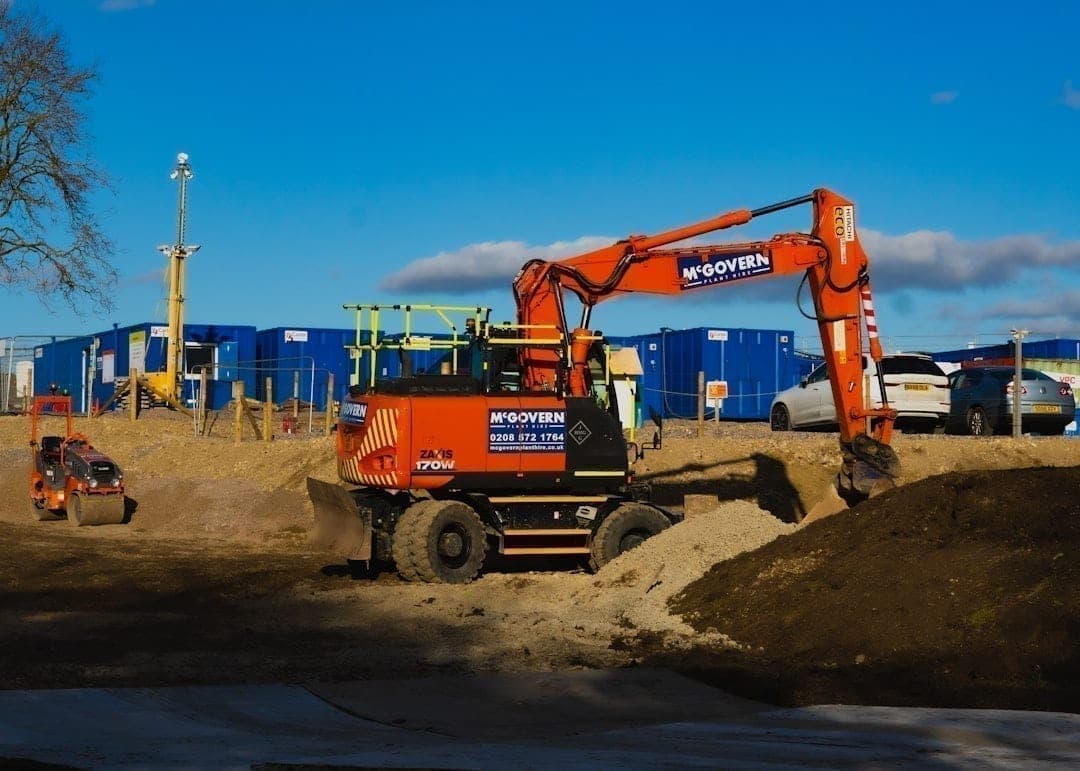

• ·Heavy excavation: Large machinery near sensitive structures requires monitoring
• ·Compaction: Vibratory rollers and plate compactors can affect nearby foundations
• ·Tunnelling: Underground work transmits vibration unpredictably through soil layers

Sensitive Locations

Even moderate construction activities require monitoring when working near:

• ·Historic buildings with fragile structures
• ·Hospitals and medical facilities
• ·Residential neighbourhoods
• ·Underground utilities and infrastructure
• ·Sites with known subsidence or settlement issues

Real-Time Monitoring vs. Traditional Approaches

Traditional vibration monitoring involves hiring specialists to install seismographs, return periodically to download data, and generate reports days or weeks later. This reactive approach leaves contractors vulnerable to complaints and violations during the monitoring gaps.

Real-time IoT vibration monitoring provides:

Instant Alerts Before Violations Occur

Modern vibration sensors connected to cloud platforms send immediate notifications when PPV levels approach thresholds. Project managers receive SMS or email alerts within seconds, allowing them to adjust operations before crossing compliance limits. Setting warning alerts at 80% of the applicable BS 7385-2 guide value -- for example, 12 mm/s where the limit is 15 mm/s -- gives operators enough time to reduce hammer energy or switch techniques before a violation occurs.

Continuous Documentation for Compliance

Every measurement is logged automatically to Sensorbee Cloud, creating an unbroken compliance record that stands up to regulatory scrutiny and protects against spurious damage claims.

Multiple Monitoring Points Without Multiple Specialists

Traditional monitoring becomes prohibitively expensive when covering multiple sensitive locations. Solar-powered IoT sensors eliminate the need for power connections and reduce costs for deploying networks of monitoring points around perimeter fences.

Integration with Dust and Noise Monitoring

Construction sites face multiple environmental compliance requirements. Multi-parameter monitoring devices that measure vibration, dust (PM10/PM2.5), and noise levels simultaneously simplify compliance and reduce equipment costs.

MEMS Accelerometers Replace Traditional Geophones

The vibration monitoring market is shifting from analogue geophones to digital MEMS accelerometers. Independent field studies show measurement differences of less than 2% between the two technologies, and BS 7385 is technology-neutral -- it specifies performance requirements, not sensor type. MEMS sensors offer practical advantages for construction: self-levelling eliminates manual setup errors, digital signal chains remove analogue drift on long cable runs, and compact housings (as small as 100 x 100 x 30 mm, weighing 350 g) fit where bulky geophone assemblies cannot. In the Netherlands, over 300 MEMS accelerometers have operated continuously in building foundations across the Groningen province for more than five years, validating the technology at scale.

How Solar-Powered Vibration Monitoring Works

Modern construction sites often lack reliable power infrastructure, particularly in early excavation phases or remote locations. Solar-powered environmental monitoring eliminates this challenge while providing 24/7 operational reliability.

Key advantages for construction applications:

10-Minute Setup Time

Traditional monitoring requires electrical installations, network cabling, and specialist configuration. Solar-powered units with NB-IoT or LTE-M connectivity mount to light poles, fences, or temporary posts in under 10 minutes. Simply attach the mounting bracket, power on the device, and monitoring begins immediately.

No Infrastructure Dependencies

Construction sites evolve rapidly as work progresses. Solar-powered sensors move easily between locations without electricians or network technicians, adapting to changing monitoring needs throughout the project lifecycle.

Extreme Weather Reliability

Construction doesn't stop for bad weather, and neither should your monitoring. Solar panels with battery backup provide continuous operation even during extended cloudy periods or winter months.

Remote Site Coverage

Excavation, roadwork, and infrastructure projects often occur far from existing power grids. Solar independence makes environmental monitoring practical for remote construction sites where traditional monitoring would be impossible or prohibitively expensive.

Modular Expansion: Start Simple, Add What You Need

One of the most practical approaches in construction monitoring is plug-and-play modularity. Rather than purchasing expensive all-in-one units with capabilities you may never use, modern systems allow you to start with basic monitoring and expand as project needs evolve.

The Air Pro 2 modular approach:

• ·Base unit: Standard air quality (PM1, PM2.5, PM10) via the particulate matter module, plus temperature, humidity, and pressure
• ·Add vibration monitoring: Plug in the Sensorbee vibration sensor, restart the device, and vibration data begins logging automatically
• ·Add noise monitoring: Attach Class 1 or Class 2 sound level meters for comprehensive compliance
• ·Add gas sensors: NO2, CO, CO2, SO2, VOC, and O3 options for industrial projects
• ·Add weather sensors: Wind and rain for correlation analysis

This modular plug-and-play design means no programming, no complex configuration -- just attach the sensor you need and it works. For construction companies managing multiple projects, this flexibility allows sensors to be redeployed and reconfigured quickly between sites.

Best Practices for Construction Vibration Monitoring

Implementing effective vibration monitoring requires more than just installing sensors. Follow these best practices to maximise protection and compliance:

1. Start Monitoring Before Work Begins

Establish baseline vibration levels from ambient sources (traffic, trains, etc.) before construction starts. This baseline protects you from false damage claims by proving pre-existing conditions.

2. Position Sensors Strategically

Place vibration sensors at the nearest sensitive structures, typically property boundaries or building foundations. For pile driving, position sensors at 1-2 metre intervals from the impact zone to the nearest structures.

3. Set Alerts Below Compliance Limits

Don't wait for violations to trigger alerts. Set warning thresholds at 80% of compliance limits, giving operators time to adjust techniques before crossing regulatory boundaries.

4. Use Public Dashboards for Neighbour Relations

Transparency prevents conflicts. Providing neighbours access to public monitoring dashboards via Sensorbee Cloud demonstrates your commitment to compliance and reduces complaint calls by answering their concerns proactively.

5. Combine with Dust and Noise Monitoring

Construction compliance involves multiple parameters. Monitoring vibration, dust, and noise simultaneously with a single device simplifies compliance, reduces costs, and provides comprehensive environmental documentation.

ROI: The Cost of Prevention vs. The Cost of Delays

Construction managers focused on budget often hesitate to invest in monitoring equipment. However, the ROI calculation is straightforward when you consider delay costs:

Cost Comparison: Prevention vs. Delays

Typical monitoring investment:

• ·Solar-powered multi-parameter station: approximately EUR 4,700
• ·Monthly data platform access: approximately EUR 50
• ·Setup time: 10 minutes (minimal labour cost)

Typical delay costs:

• ·Single day project shutdown: EUR 9,500–47,000 (depending on project size)
• ·Environmental violation fines: EUR 4,700–95,000 (varies by jurisdiction)
• ·Structural damage claims: EUR 18,000–180,000+ (legal costs and settlements)
• ·Reputation damage: immeasurable impact on future project bids

A single prevented delay pays for monitoring equipment many times over. For larger projects, multiple monitoring points remain cost-effective compared to traditional specialist monitoring approaches.

Case Study: Preventing Delays Through Proactive Monitoring

A Stockholm infrastructure project illustrates the value of real-time vibration monitoring. During deep foundation work near 19th-century residential buildings, the contractor deployed solar-powered multi-parameter monitors at four sensitive locations.

The challenge: Pile driving required impact hammers within 15 metres of historic structures with strict 5 mm/s PPV limits.

The solution: Real-time vibration monitoring with immediate SMS alerts sent to equipment operators when levels approached 4 mm/s (80% of the limit).

The results:

• ·Zero compliance violations throughout the 6-month foundation phase
• ·Proactive equipment adjustments prevented 12 threshold exceedances
• ·Continuous data documentation dismissed two neighbour damage complaints
• ·Project completed on schedule without environmental delays
• ·Monitoring data supported approval for future similar projects in historic districts

The contractor calculated that avoiding just one day of project shutdown justified the entire monitoring investment.

Getting Started with Vibration Monitoring

Implementing vibration monitoring doesn't require weeks of planning or specialist expertise. Modern plug-and-play systems make deployment fast and straightforward:

Week 1: Planning

• ·Identify sensitive structures and set monitoring priorities
• ·Determine compliance thresholds for your jurisdiction (e.g. BS 7385)
• ·Map monitoring point locations around your perimeter

Day 1: Deployment

• ·Mount solar-powered monitoring stations (10 minutes per location)
• ·Configure alert thresholds in the cloud platform

Ongoing: Operations

• ·Receive real-time alerts via SMS/email when thresholds approach
• ·Review daily/weekly reports for compliance documentation
• ·Adjust operations proactively based on monitoring data

For construction companies managing multiple simultaneous projects, the same monitoring equipment redeploys quickly between sites as projects complete and new work begins.

Conclusion: Prevention Beats Remediation

Construction vibration monitoring has evolved from expensive specialist service to practical, affordable project insurance. Solar-powered IoT sensors with real-time cloud connectivity give construction managers the tools to prevent delays, protect neighbours, and demonstrate regulatory compliance -- all while deploying in minutes and operating independently for months.

The question isn't whether vibration monitoring provides value, but whether you can afford to start work without it. With setup times under 10 minutes and costs that pay for themselves by preventing a single delay, real-time vibration monitoring has become essential infrastructure for responsible construction management.

Ready to Protect Your Next Project?

The Air Pro 2 with vibration monitoring provides construction teams with real-time alerts, multi-parameter compliance monitoring, and 10-minute deployment. The modular design expands from basic air quality monitoring to comprehensive dust, noise, and vibration compliance with simple plug-and-play sensor additions.

Request a demo to see how solar-powered construction monitoring protects projects from costly delays and builds better neighbour relations.

Frequently Asked Questions

What PPV limits apply to construction vibration in the UK?

Under BS 7385-2, PPV limits for construction vibration typically range from 5 mm/s for sensitive or historic structures up to 50 mm/s for industrial buildings. The exact threshold depends on building type, construction condition, and vibration frequency. Most residential projects work to limits between 5 and 15 mm/s.

How quickly can vibration monitoring be deployed on a construction site?

Solar-powered monitoring stations such as the Air Pro 2 with vibration sensor deploy in under 10 minutes per location. There is no need for mains power, broadband, or specialist electricians. A typical perimeter of four monitoring points can be fully operational within an hour.

Can vibration monitoring data be used as evidence against damage claims?

Yes. Continuous, timestamped vibration data logged to Sensorbee Cloud provides an auditable compliance record. Baseline measurements taken before construction begins help prove pre-existing conditions, and the unbroken data trail demonstrates that work stayed within permitted PPV limits.

What other parameters should be monitored alongside vibration?

Construction sites typically need to monitor dust (PM10/PM2.5), noise (sound level meters), and weather conditions (wind speed and direction) alongside vibration. The Air Pro 2's modular design allows all of these to be monitored from a single device.
