Sensors

The Sensors tab lists every sensor connected to the device, along with its current value and last update time.

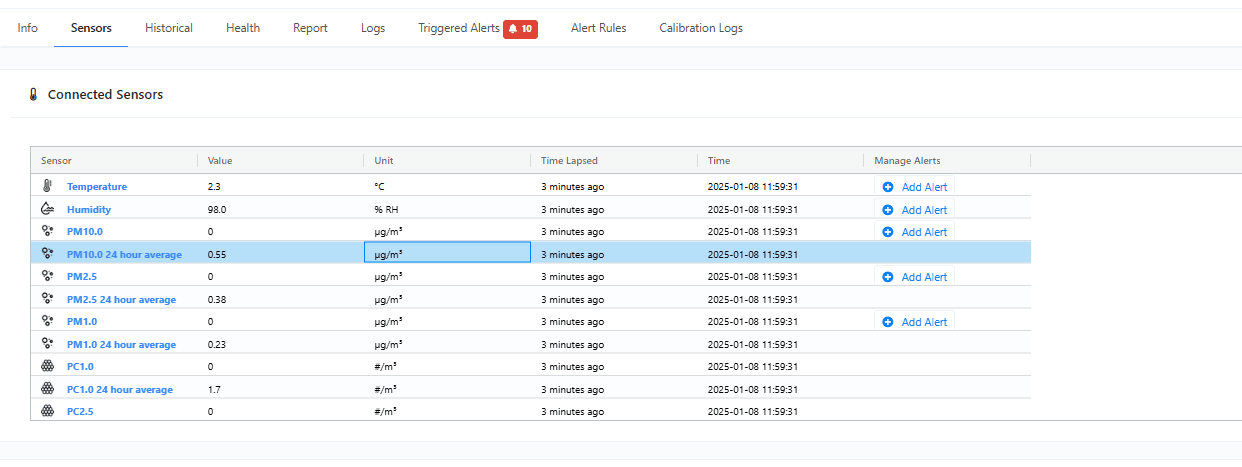

Connected sensors.

If the sensors are connected via a Sensorbee tag, the tag metadata is also shown — serial, family type, preheat, version, and production year.

Tag information.

This tab also exposes configuration settings for particle and gas sensors, when present.

Particle sensor settings

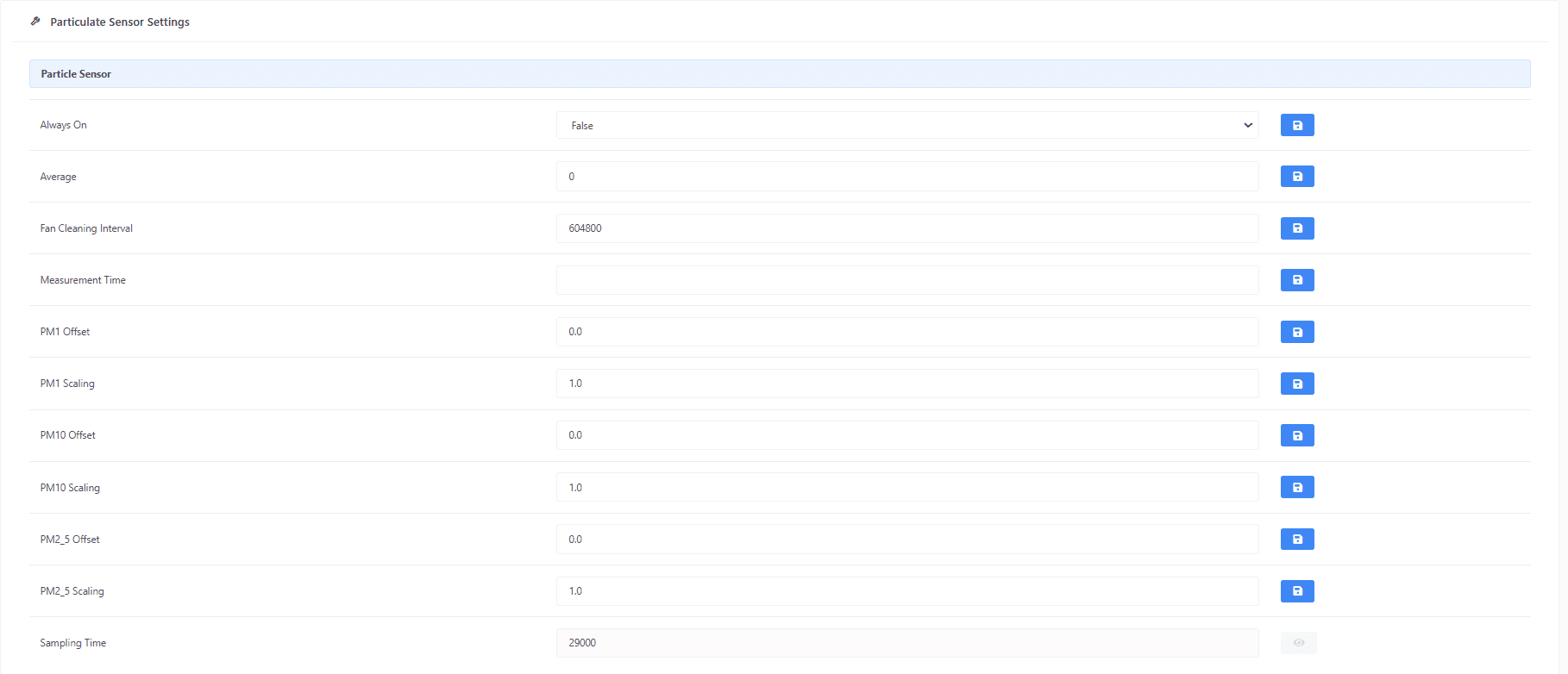

Particle sensor settings.

Setting	Description
Always On	Keep the particle sensor running continuously so it can be read more often. Increases power consumption — recommended only with external power.
Average	Number of samples collected and averaged before updating the reported value. Higher values increase sampling time.
Fan Cleaning Interval	Interval (in seconds) between fan cleaning cycles.
Offset Constant	Offset constant applied to the particle mass values.
Offset Factor	Offset factor applied to the particle mass values.
Sampling Time	How long the sensor takes to collect a single sample.

Gas sensor settings.

Setting	Description
Always On	Keep the gas sensor running continuously. Increases power consumption — recommended only with external power.
Offset Constant	Offset constant applied to the gas sensor output.
Offset Factor	Offset factor applied to the gas sensor output.
Sensitivity	Sensitivity factor in nA per ppm.
Temperature Compensation	Enables or disables temperature compensation.
Zero Current Offset	Zero current offset in nA.

For the underlying calculations, see Gas Sensor Calculations.
